NodeX DETAILS

Name of the NodeX machines

node1, node2, reynolds

Fully Qualified Domain Name

node1.iitgn.ac.in

node2.iitgn.ac.in

reynolds.iitgn.ac.in

IP Address of HPC cluster

node1.iitgn.ac.in | 10.0.137.6

node2.iitgn.ac.in | 10.0.137.8

reynolds.iitgn.ac.in | 10.0.62.210

Make

Fujitsu

Usable Storage

~1TB in each workstation

Total CPU

24 cores Intel(R) Xeon(R) CPU E5645 @ 2.40GHz in each node

Total GPU

1 x NVIDIA Tesla K20Xm in each GPU node

Total Compute nodes

1 each

Total GPU nodes

1 each

Job Scheduler

None

User level Quota

50 GB per user in the home directory

Usage Guidelines

USAGE GUIDELINES



  • Users are supposed to submit jobs only through interactive manner
  • Users should run and write their jobs from /home/username/foldername only
  • Users must understand that HPC is a central facility that is shared by all members of the institute. Users should therefore use an optimum number of processing cores by testing for scaleup.
  • Users are strongly encouraged to specify only the required number of processing cores.
  • The quota for each user is 50 GB in home directory.
  • It is strongly recommended that users backup their files-folders periodically, as ISTF will not be having a mechanism to backup users’ data.
  • For any issue or requests pertaining to Aneesur, please send your email with your working-path, error logs and error screenshots and submit-script only at helpdesk.istf@iitgn.ac.in
  • Users may use -X as a flag to run X Windows or any GUI based app
Software

Operating System

  • node1.iitgn.ac.in | CentOS 7.6 64-bit
  • node2.iitgn.ac.in | Ubuntu 18.04 64-bit
  • reynolds.iitgn.ac.in | CentOS 7.6 64-bit

Applications – Latest and stable version of software installed as in NodeX.

Installed application and executable details are given in the below table:

Application Name executable location
 gromacs /opt/gromacs512/gromacs-5.1.2/build/bin
 quantum espresso /opt/quantumespresso/qe-6.2.1/bin
 NAMD /opt/NAMD/NAMD_CVS-2016-08-29_Linux-x86_64-multicore
 lammps /opt/Lammps/lammps-stable_22Aug2018/build
 Unitah apps/uintah/gcc-4.8.5/2.1.0
 StarCCM Create a file under your home directory
vim .flexlmrc
Put the below content in that file and save that file
CDLMD_LICENSE_FILE=2000@10.0.137.114
 ANSYS  /usr/ansys_inc/v180/ansys/bin
 MATLAB  /usr/local/bin/matlab
 MATHEMATICA  /usr/local/bin/mathematica
 R  /usr/bin/R
 COMSOL  /usr/local/bin/comsol
OpenFoam /opt/openfoam7/platforms/linux64GccDPInt32Opt/bin/interFoam
How-To's

How to Obtain an Account in NodeX: Please send an email to helpdesk.istf@iitgn.ac.in with a copy to your supervisor. Also please do let us know the duration of the account required and the list of software which you wish to run.

Name of the workstation: NodeX
IP of the workstation: node1.iitgn.ac.in | 10.0.137.6
IP of the workstation: node2.iitgn.ac.in | 10.0.137.8
IP of the workstation: reynolds.iitgn.ac.in | 10.0.62.210

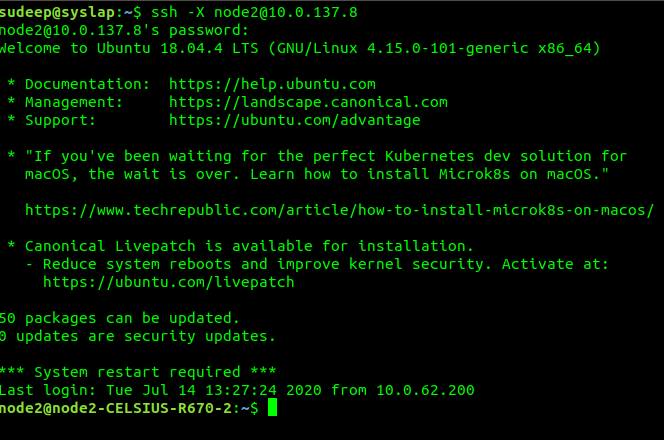

Login from Linux:
To login from Linux you simply need to open a Terminal which is installed with the base OS of any flavor of Linux.



Login from Windows:
If you use Windows then you can use Putty which can be downloaded from here.

Click “Yes” to continue

External Usage

Computational Resources for External Usage @HPCLab in IITGN

Access to our High Performance Computing (HPC) Facility is granted to external users (Academic/Research organizations and Industry only) through a Committee.

The Proposal from the user should reflect the

  • Technical Details of specific facility needed & its duration
  • Brief scientific narration of their proposed work

Please send your detailed proposal to support.hpc@iitgn.ac.in

Based on the review outcome and feasibility consideration of our facility, we will allocate computer resources.

Obtaining the HPC Account

  • Once the proposal is reviewed, accepted and approved by the committee, the user may download, fillup the HPC application form ink-sign, scan it and email us.
  • Thereafter a unique group/user name will be created for the external user and associated user(s) and thereafter the user credentials would be sent in reply-email.

Usage Policy

Forms

Contact

  • Email: support.hpc@iitgn.ac.in
Funding

Funding Agencies



Recognized As

Publications

Coming Soon…!

Galleries

FAQ’s

How to Request for HPC account

Please send an email to helpdesk.istf@iitgn.ac.in with a copy to your supervisor. Also please do let us know the duration of the account required and the list of software which you wish to run.

Where is my quota and how do I change it?

The quota for each user is 50 GB in home directory.
quota -v

How many Jobs can I run with how many cores?

There is no limit on the number of jobs per user. But since this is an institute facility hence it is requested to use the resources judiciously

Where do I run my Jobs?

Users should run and write their jobs from  /home/username

User Data Backup

It is strongly recommended that users backup their files-folders periodically, as ISTF will not be having a mechanism to backup users’ data.

Whom should I contact for any issue?

For any issue or requests pertaining to VEGA, please send your email with your working-path, error logs and error screenshots and submit-script only at helpdesk.istf@iitgn.ac.in
